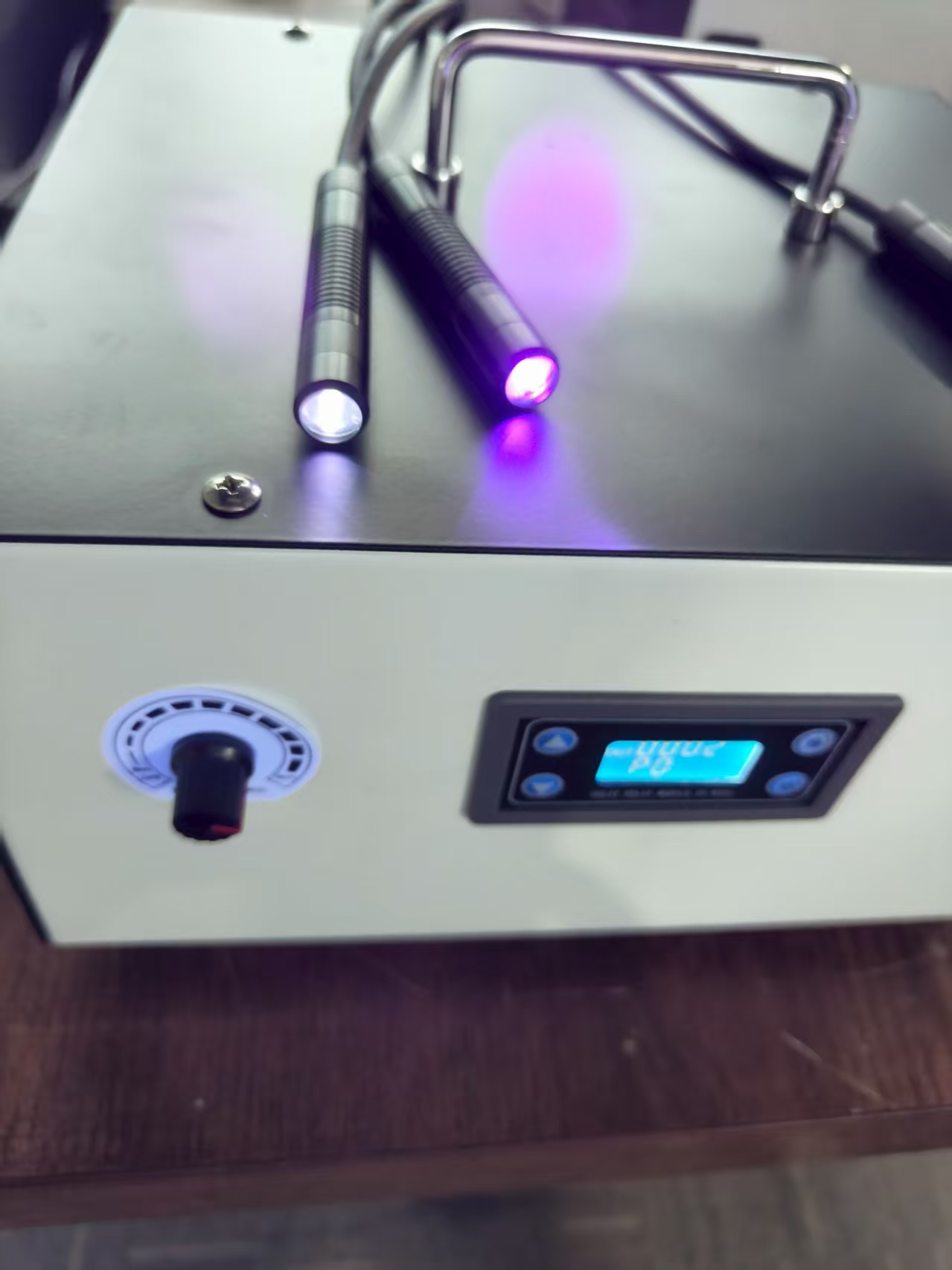

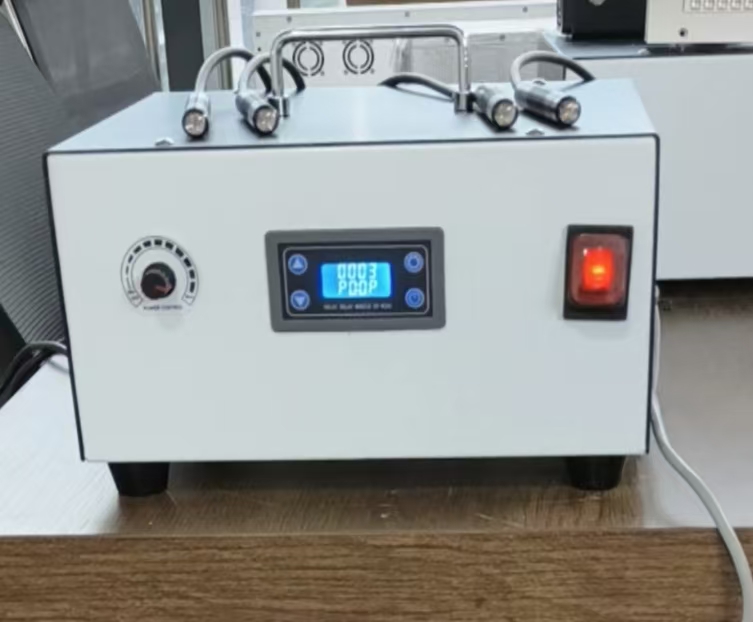

Efficient multi-position collaborative curing solution: Four-channel UV LED point light source curing machine
Model: JLKDGY one to four (customizable)
Wavelengths: 365nm/385nm/395nm/405nm (dual wavelength 365/395nm gold combination, suitable for 90% industrial UV adhesives)
Core advantages
1. One to four intelligent control, efficiency doubled
- A single controller drives 4 independent irradiation heads, supporting synchronous/asynchronous operation: can cure 4 positions simultaneously,
or set different parameters (intensity, time) as needed to handle multiple process tasks, increasing production capacity by 300%.
- Touch screen control + RS232/PLC interface, achieving precise program control (6 programs, 8 steps chain triggering), seamlessly integrating with
automated production lines.
2. Gold wavelength deep curing, wide compatibility
- 365nm: specializes in high penetration requirements (50-100μm adhesive layer), matching the absorption peaks of acrylate/epoxy resins, curing
strength > 25MPa, eliminating "false curing."
- 395nm: compatible with general UV adhesives and heat-sensitive materials (plastics, PCBs), surface temperature rise ≤5℃, avoiding thermal deformation.
3. Industrial grade strength and stability
- Peak intensity 12,000mW/cm² (ultra-high light intensity version), completes micro-area curing in 3-5 seconds (such as a φ1.5mm spot), yield rate > 99%.
- Four-channel light intensity deviation ≤3%, built-in temperature monitoring + power compensation, ensuring a lifespan of 20,000 hours.
4. Compact design, zero thermal damage

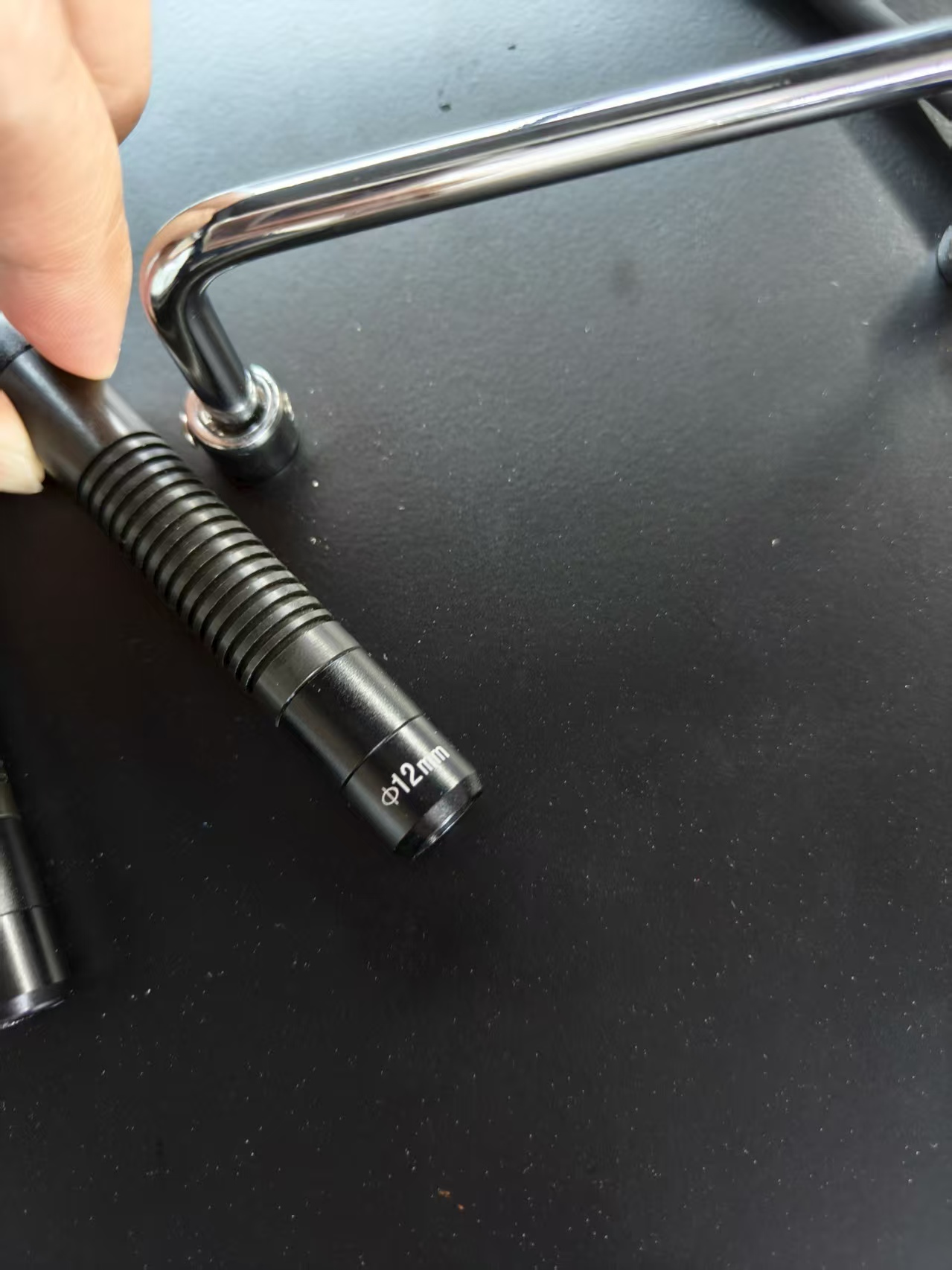

- Irradiation head only 78×112×8mm (surface light source)/ φ3-16mm spot (point light source), 5-20mm close-range operation, integrated into narrow
equipment (such as mobile phone camera modules).
- Pure UV cold light source, no infrared radiation.
5. Energy-saving and environmentally friendly, cost optimization
- Power consumption <50W (1/10 of mercury lamp), no ozone, no mercury pollution, annual electricity savings exceeding ten thousand yuan.
Typical Application Scenarios
| Domain | Application Case | Curing Effect |
|----------------------- |--------------------------------------------- |------------------------------------------ |
| Optical Communication | Fiber Array Bonding, Laser Collimator Packaging | Insertion loss deviation < 0.05dB, no cracking under thermal cycling (-40°C to 85°C). |
| microelectronics | Mobile phone lens assembly, chip fixation | Lens parallelism deviation ≤ 0.01°, bonding strength increased by 30% |
| medical devices | Catheter sealing, endoscope assembly | Cures in 5 seconds, passes biocompatibility test |
| Scientific Research/Optics| Lenticular cementation, photocatalytic experiment | Supports 520nm visible light band, suitable for scientific research customization |
Technical Specification Table
| component | parameter |
|------------------------|------------------------------------------|
| controller | Dimensions: 320×160×130.4mm (Air-cooled)）/ 98×138×160mm（Fanless）Input：100-240V AC communication：RS232/I/OTerminal，Supports PLC linkage |
| Illumination head | Spotlight: Point light source (φ1.5-20mm) / Line light source (5×50mm) / Plane light source (50×50mm) Power density: up to 12,000mW/cm² (point light source) Line length: 2m/5m (customizable) |
| environment | Working temperature: 0-45°C <br>Humidity: <85% without condensation |
Value Created for Customers
Cost Reduction and Efficiency Enhancement: 4-position parallel operation reduces labor costs by 50%, with a single shift production capacity reaching 2,400 sets (optical communication case).
Zero Risk Integration: Free glue matching test + optical solution customization (non-standard lenses/illumination angles).
Selection Reason: Industrial-grade multi-channel UV curing platform redefines the standard of efficient curing with wavelength accuracy, intelligent collaboration, and reliability of 20,000 hours.
Note: Parameters are customizable (wavelength/spot size/cooling mode), please consult the technical team for an appropriate solution.
