✨Product Overview:

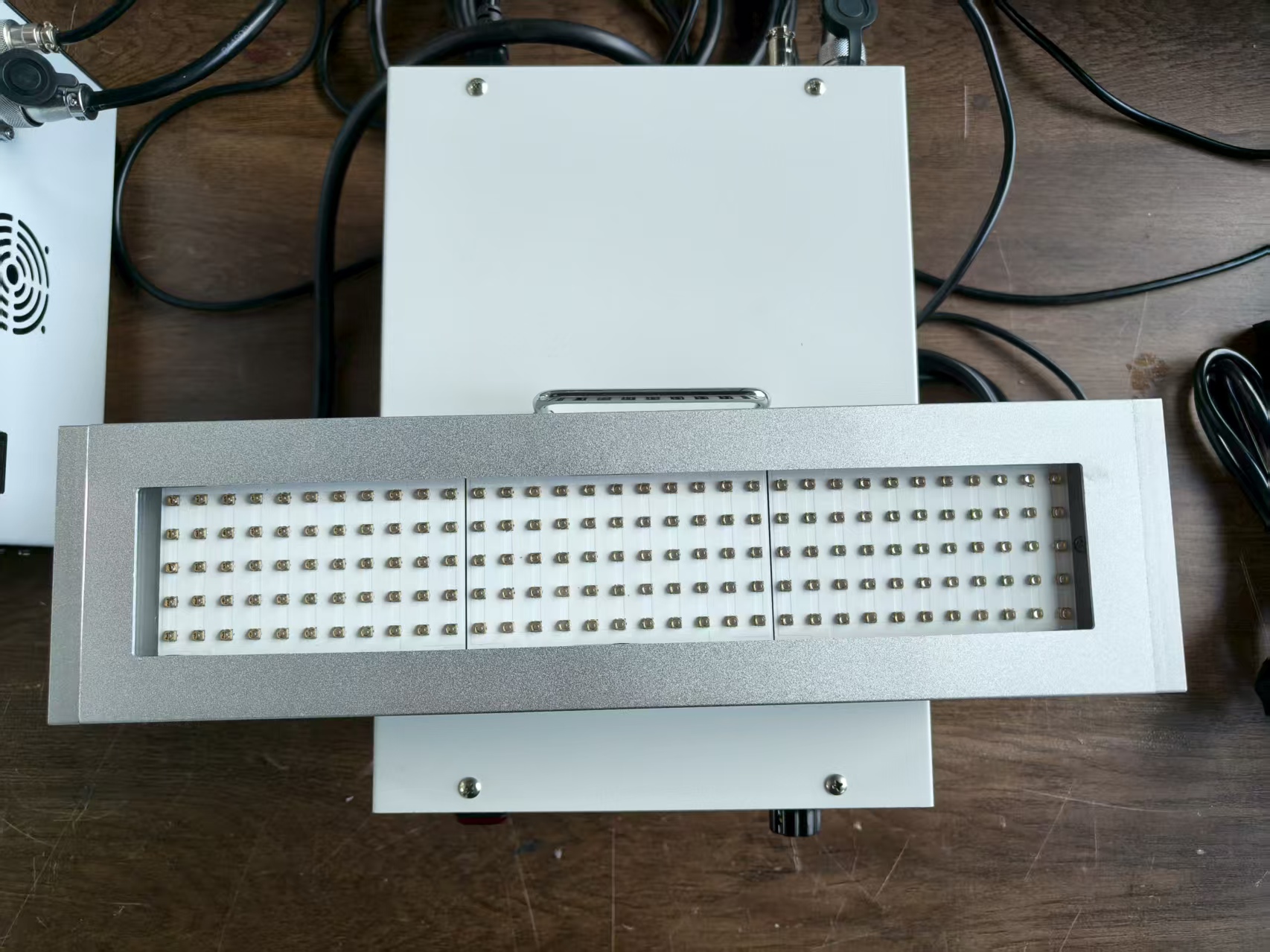

This air-cooled one-to-one LEDUV curing lamp uses high-quality imported LED chips, with a rectangular light spot of 300*50mm, specifically designed
for industrial-scale linear curing needs. The product features high energy, fast curing, long lifespan, and instant use, perfectly replacing traditional mercury
lamps. It is energy-saving, environmentally friendly, and has no thermal radiation, widely used in industries such as microelectronics, PCB boards, liquid crystal
packaging, medical devices, printing and spraying for UV glue, UV ink, and UV coating curing.
⭐ Key Selling Points:

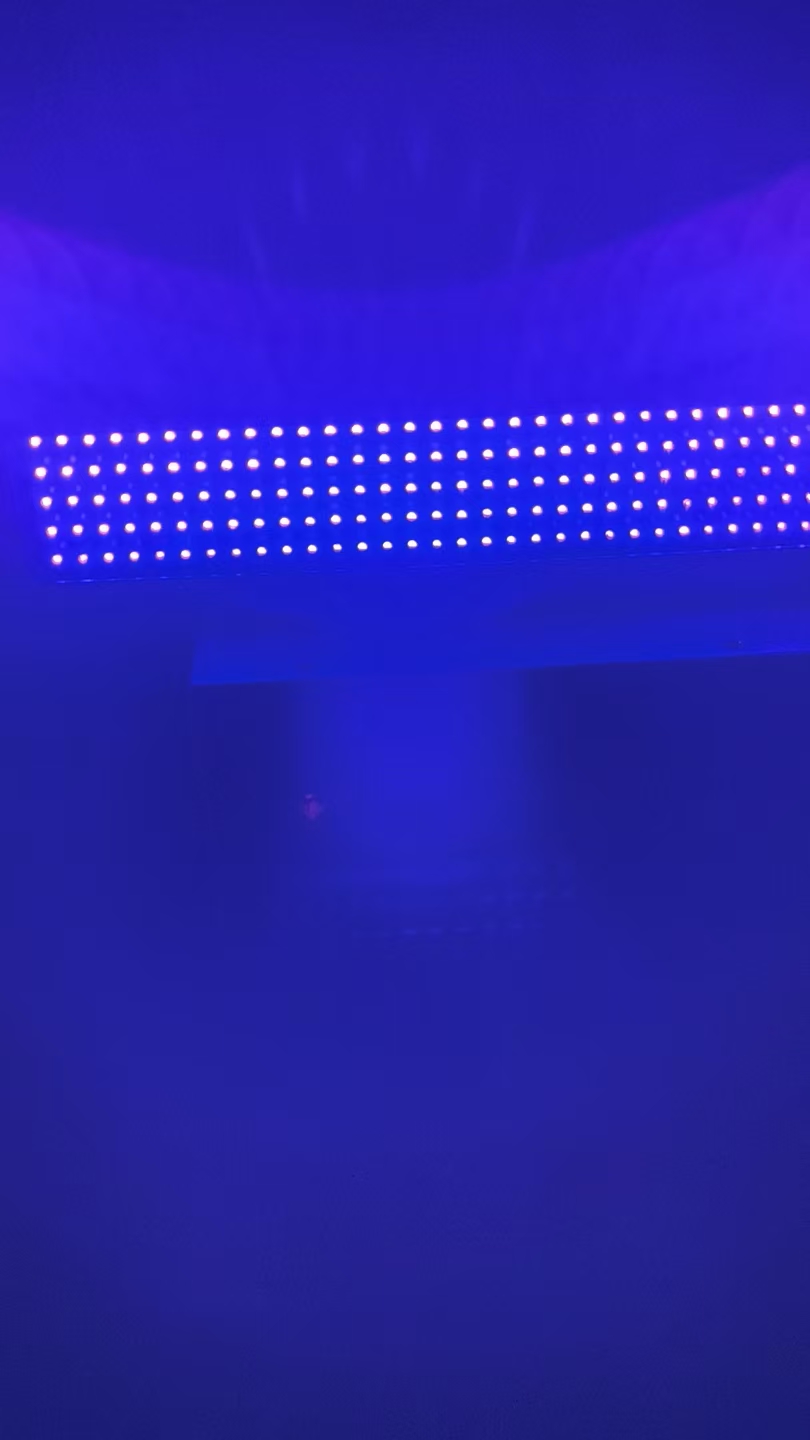

Efficient and Uniform Curing: Imported high-quality LED beads, outputting a 365nm±5nm (or 395nm±5nm optional) ultraviolet wavelength band with excellent
uniformity of light intensity distribution (optional uniform optical lens), ensuring consistent and reliable curing effects within the 300*50mm irradiation area,
significantly improving production efficiency and product quality.

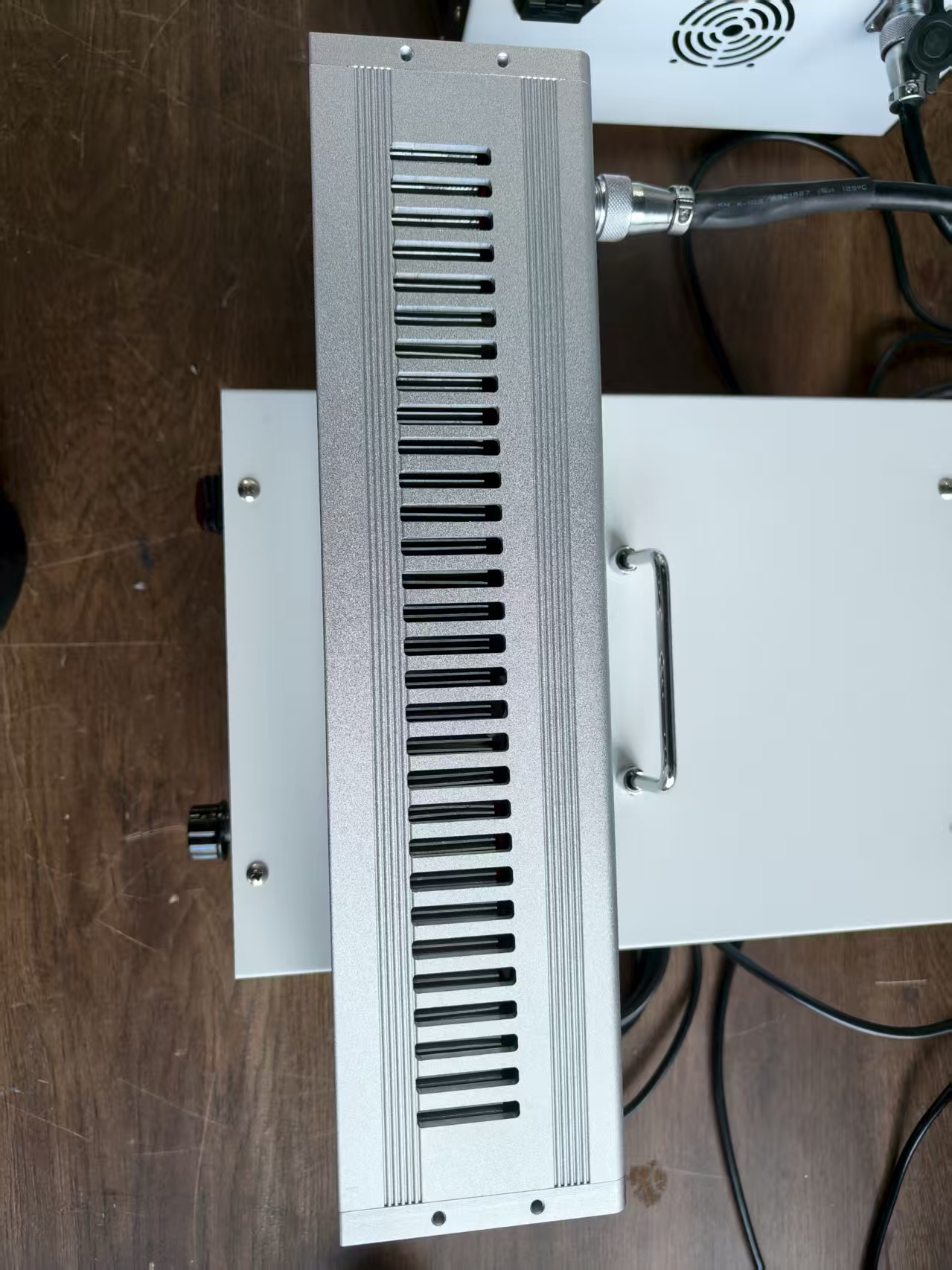

Robust Air Cooling: Utilizes an efficient intelligent air cooling system to effectively control the working temperature of LED beads, ensuring long-term continuous
stable operation of the equipment and extending the lifespan of LEDs (typical life >20,000 hours).
Flexible One-to-One Configuration: A controller independently controls one irradiation head (one-to-one), with simple operation, support for external triggering,
and easy integration into automated production lines for precise synchronous control.
Intelligent Control and Safety: The controller is equipped with a digital display interface that can precisely adjust the light intensity (1%-100% stepless adjustment)
and irradiation time, with multiple irradiation modes (manual, jog, automatic timing). The equipment has safety features such as overheating protection, ensuring
stable and reliable operation.
Energy-saving, Environmentally Friendly, and Economical: Compared to traditional mercury lamps, energy consumption is significantly reduced, and there is no
ozone production or mercury pollution, meeting the requirements of modern green manufacturing. Instant use, no need for preheating, minimizing energy waste.
