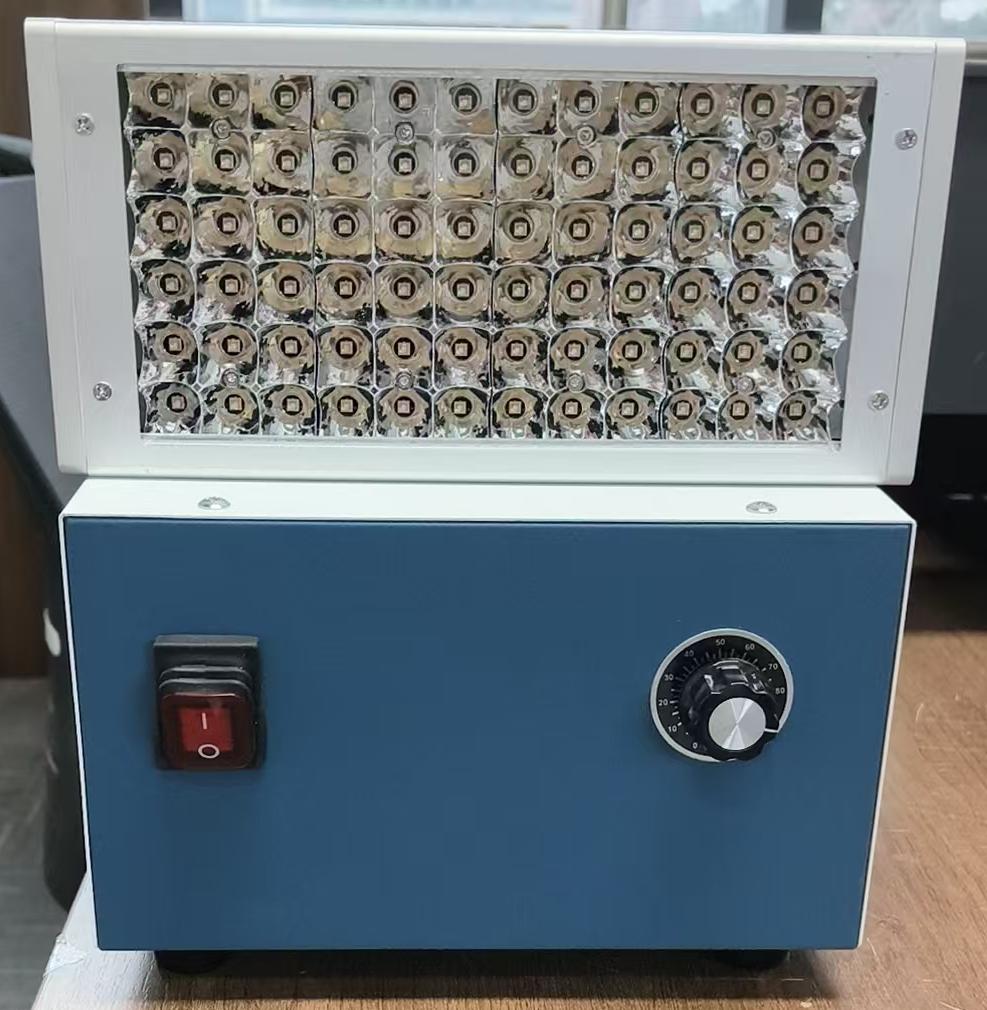

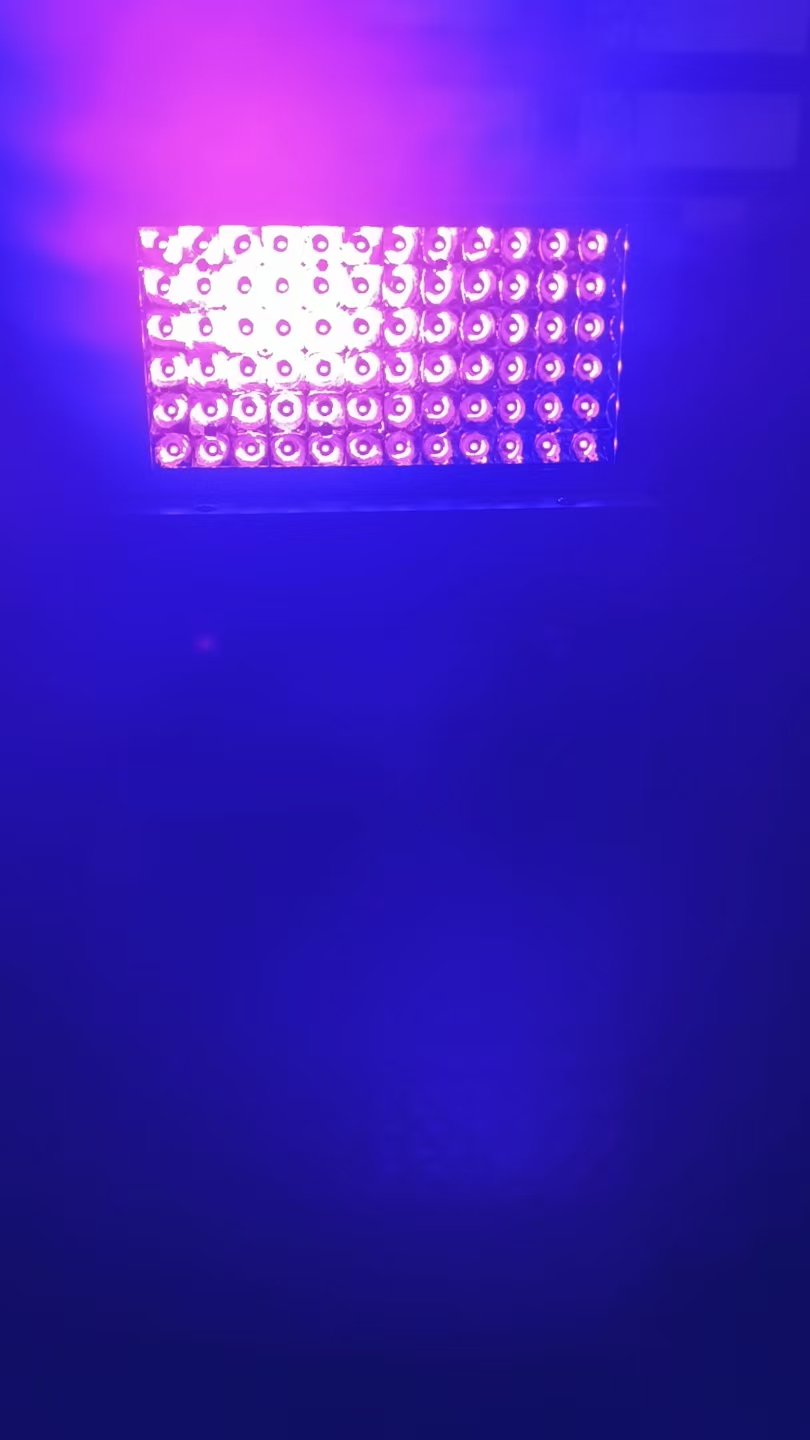

Uniform Size Curing: With a super large irradiation area of 200*100mm, the light spot is uniform, allowing for one-time curing of larger workpieces
and doubling efficiency.
• Flexible One-to-One Design: A single host drives one lamp head, concentrating energy and providing stable output, making it more freely movable
and arranged.
• High Power Density at 10W: Imported LED lamp beads instantly release high-intensity ultraviolet light, with curing speeds in seconds, significantly
improving production efficiency.
• Instant Use Without Preheating: Say goodbye to the long wait of traditional mercury lamps; power reaches 100% upon turning on, ready to use as
needed, saving up to 80% on energy consumption.
• Long Lifespan and Maintenance-Free: The LED cold light source design has an average lifespan of over 10,000 hours, almost eliminating the need for
bulb replacement, greatly reducing usage costs.
• Precise Wavelength Options: Mainstream wavelengths of 365nm (strong penetration) or 395nm (fast curing speed) are available to meet the curing needs
of different materials.
(二) Product Parameter Table
| parameter items | parameter value |
|---|---|
| Product model | JLK200100-F one-to-one |
| Illumination head size | 200mm (L) * 100mm (W) |
| Design Patterns | One-to-one (one power supply host + one lamp holder) |
| LED wavelength | 365nm / 395nm /405（optional） |
| rated power | 250W (Customizable power) |
| power density | ≥ 5000 mW/cm² (Adjustable according to customer requirements) |
| Light source life | ≥ 10,000 H |
| Illumination distance | Recommended size: 5-20mm |
| Power input | AC 100-240V 50/60Hz |
| Trigger Mode | Manual switch / External footswitch (optional) |

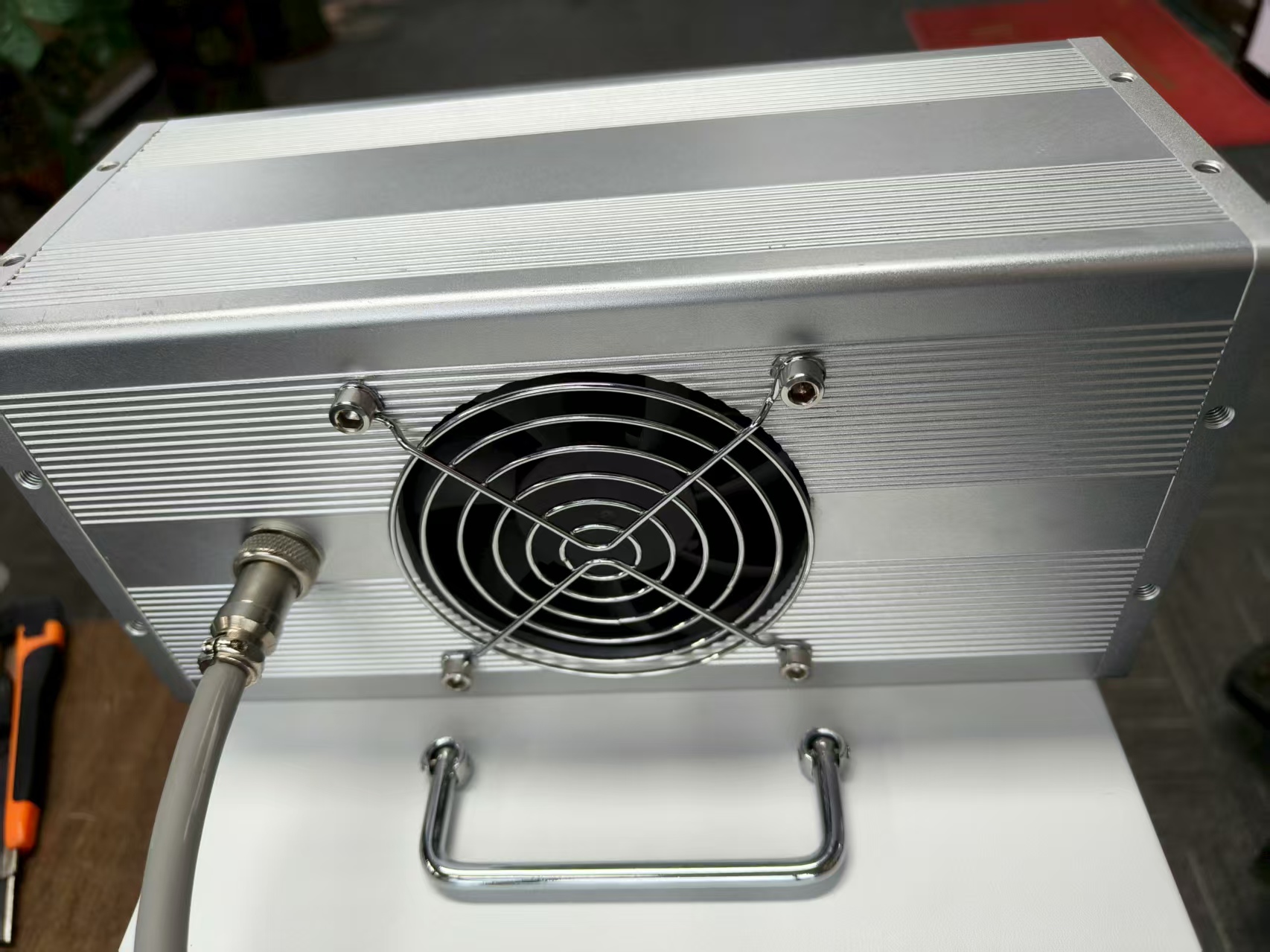

| heat dissipation method | Built-in high-efficiency silent fan forced cooling |
| Body material | Aluminum alloy + stainless steel, sturdy and durable |
| Net weight | Approximately 2.5 KG (subject to the actual product) |
(III) Application Scene Description
This large-size UV curing lamp is an efficient assistant for your production, widely used in:
Electronic Digital: Mobile phone component packaging, touch screen lamination, sensor curing, coil fixation.
Medical Supplies: Medical catheter, syringe, filter, blood collection tube bonding and sealing.
Craftsmanship: Jewelry and gemstone inlay, glass crystal bonding, model making and repair.
Printing and Packaging: Instant curing of UV ink, UV varnish, and anti-counterfeiting spray code.
Scientific Research and Experiments: Laboratory small batch sample production, optical device packaging, new material research and development.
Other Fields: Fiber optic coating, automotive parts repair, post-processing curing of 3D printing, etc.
(IV) Company Strengths and Service Guarantees
Original Manufacturer: Independently developed and produced, we refuse intermediary markups, ensuring quality control and more competitive prices.
Customization: We can customize UV curing equipment with different sizes, powers, wavelengths, and lengths according to your needs.
Quality Assurance: All components are imported LED chips and high-quality parts, with strict quality inspection and a 12-month warranty.
Professional Services: We offer pre-sales technical consultation and post-sales usage guidance to eliminate your worries.
Bulk Discounts: Bulk purchases or OEM/ODM orders enjoy better prices, please call for more details.
(V) Purchase Instructions
Wavelength: Please confirm the sensitive wavelength of the curing material you need before taking photos. If 365nm is required, please leave a message or contact customer service.
Voltage: This product is globally compatible with wide voltage, so you don't need to worry about voltage issues.
Safety Tip: UV light can be harmful to the eyes and skin, so make sure to wear professional UV protective glasses when operating.
Shipping List: Main Unit 1, Lamp Head 1, Power Cord
