【Product Name】

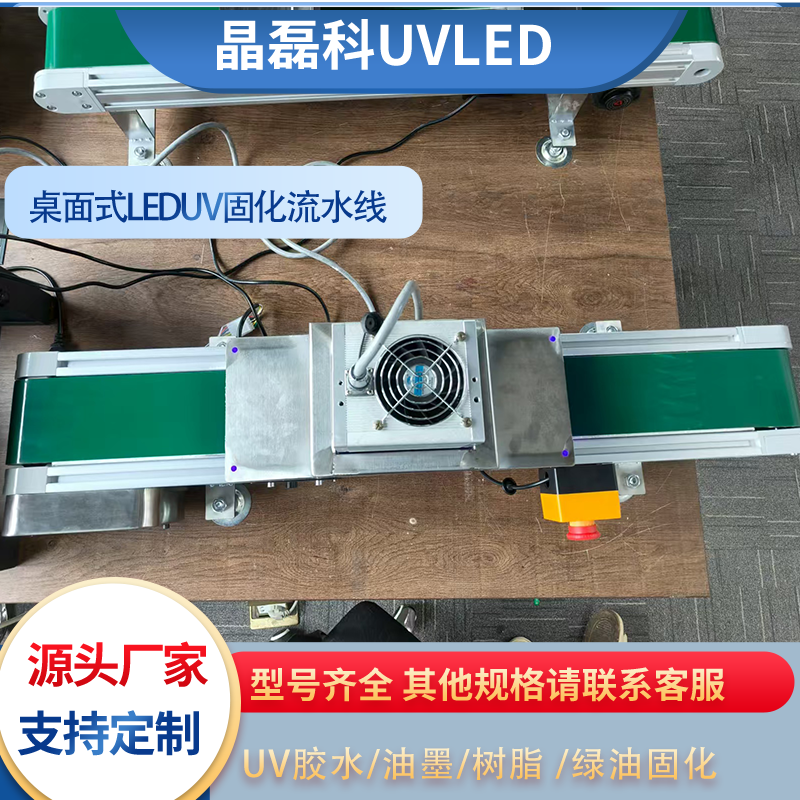

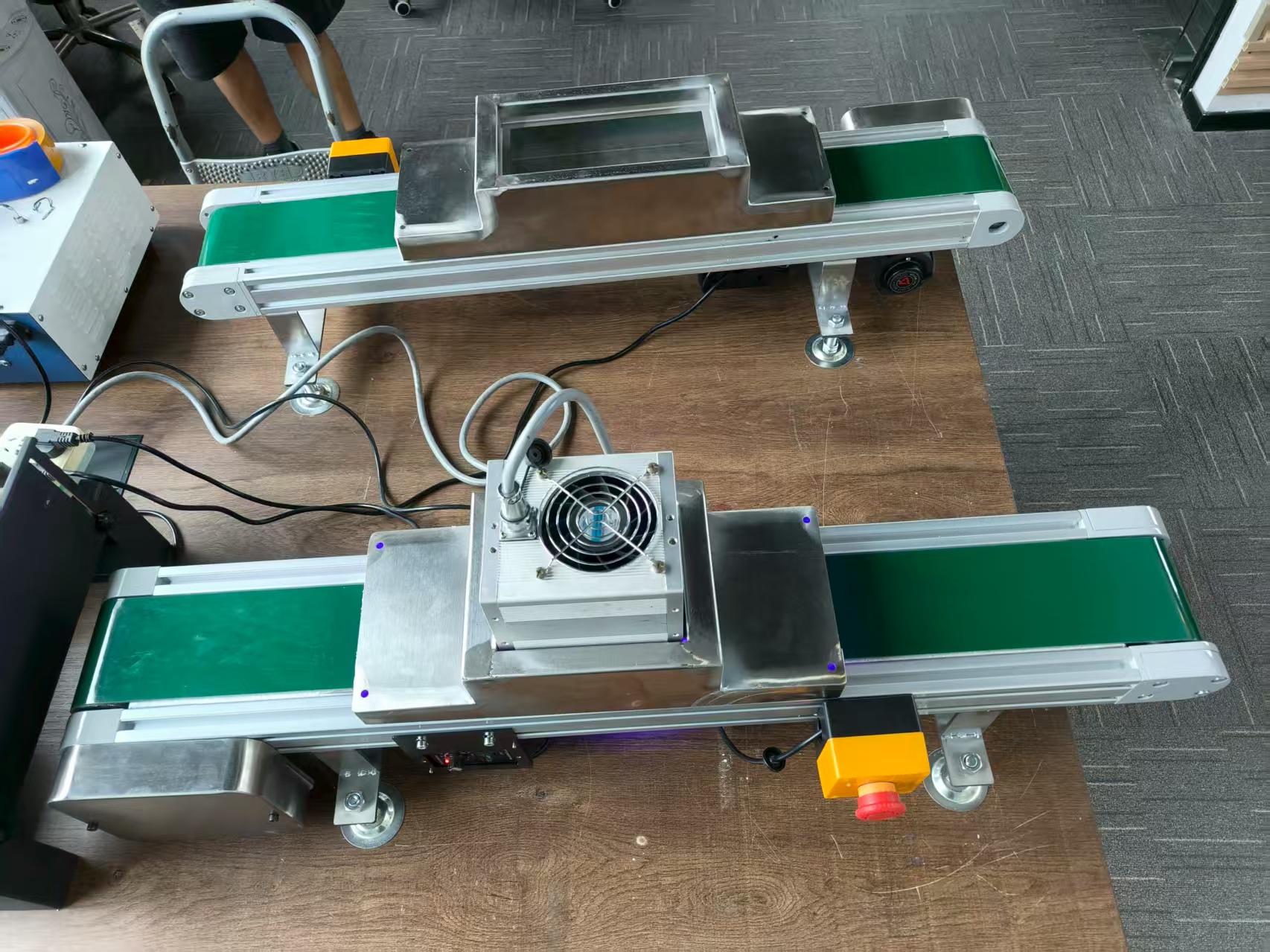

Desktop LED UV curing line equipment (illumination surface 100*100mm, customizable)
【Core selling point/advantage summary】

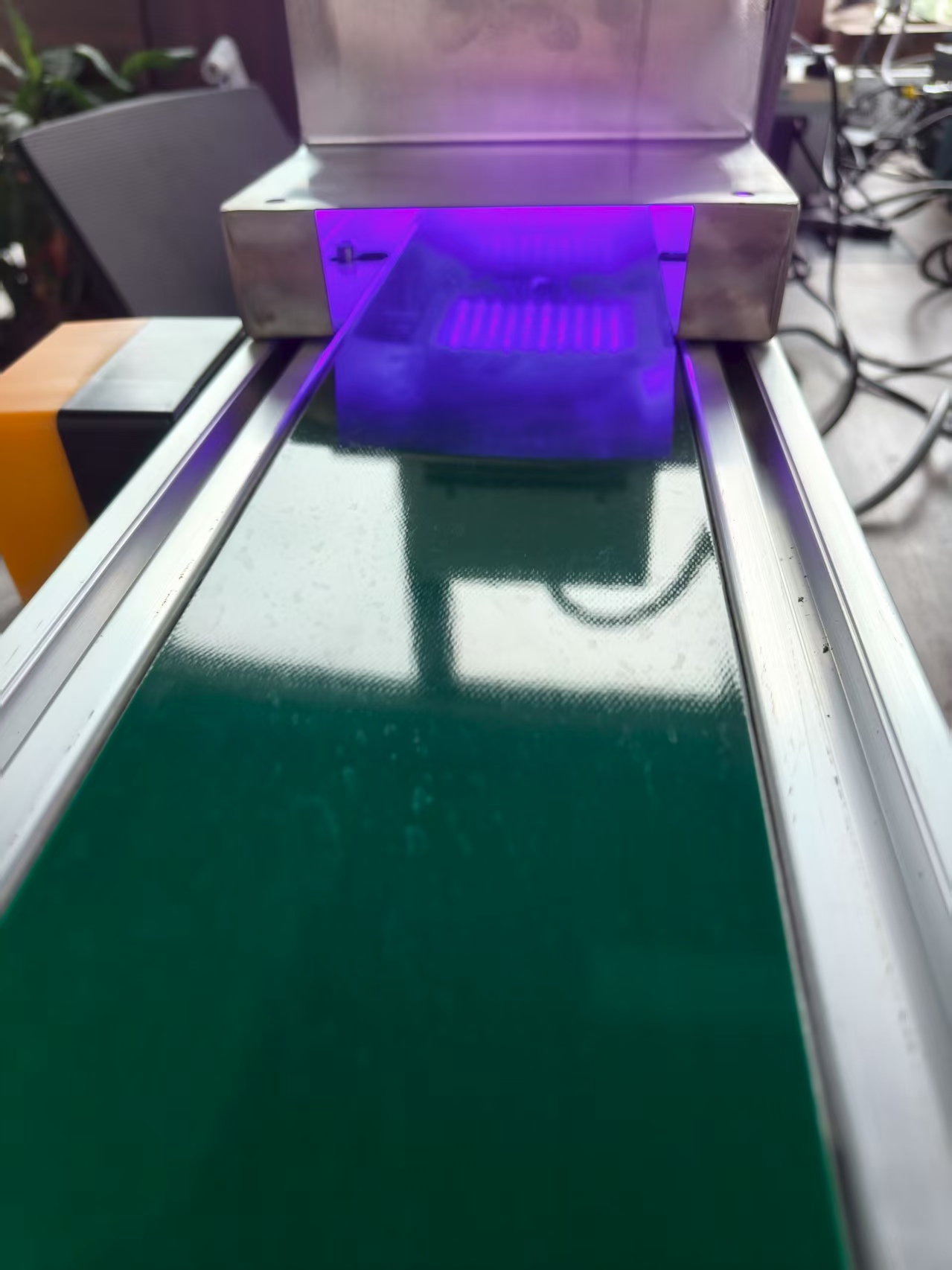

Efficient curing：Using high-power LED ultraviolet light sources, instant triggering, mainstream wavelengths of 365nm/395nm, fast and uniform curing, significantly improving production efficiency。
Desktop design：Compact structure, saves space, very suitable for laboratories, small studios, small batch production and teaching research and development.
Quality transmission：Imported stepper motors/precision timing belts, speed can be adjusted infinitely (digital display), smooth and quiet operation, ensuring consistent product curing。

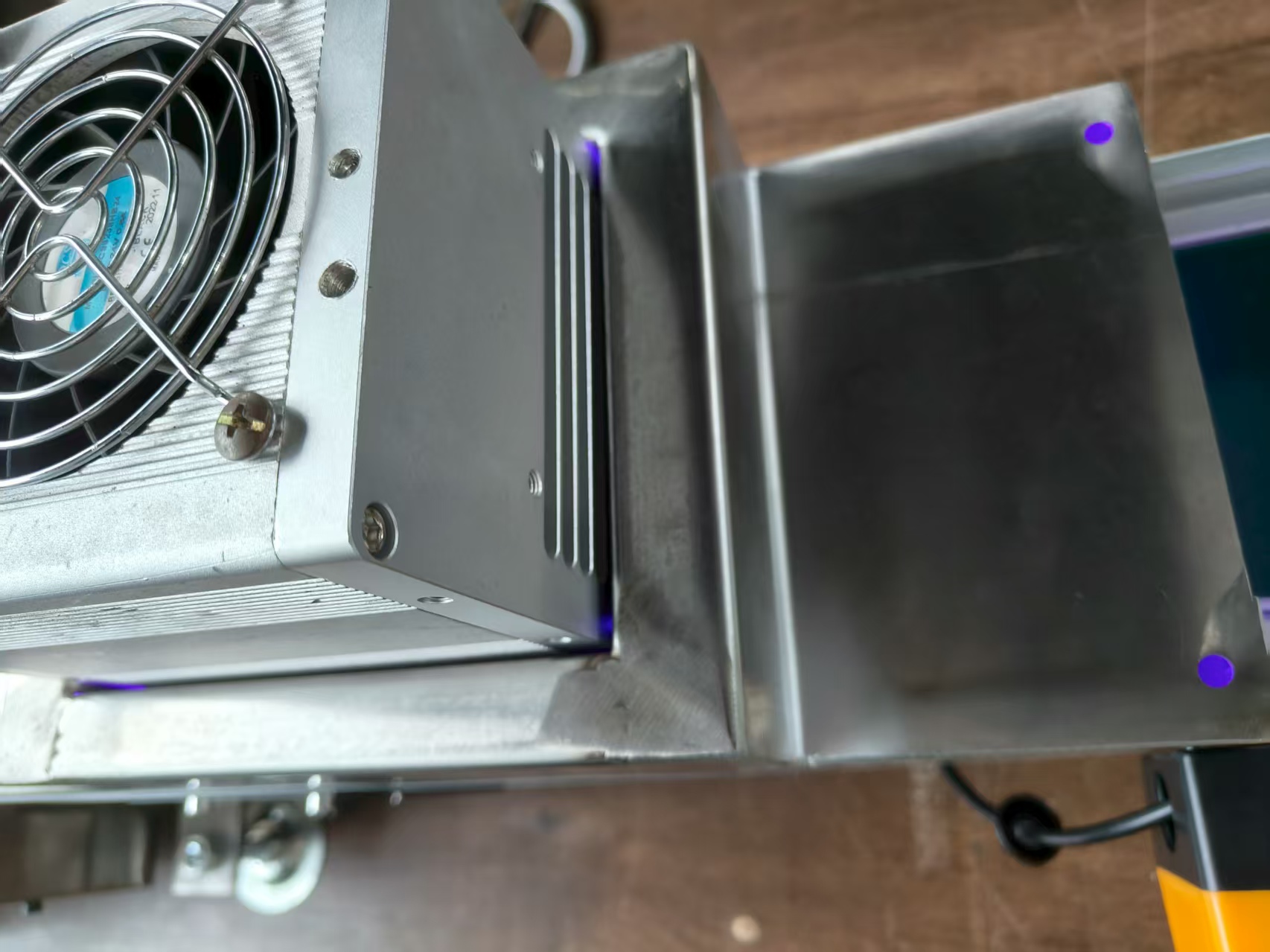

Safe and reliable：Built-in heat dissipation system, effectively controls the temperature of the light beads, extending their lifespan; equipped with a protective sunshade plate, effectively blocks ultraviolet rays, protecting the safety of operators.。
Highly customized：The irradiation area, conveyor length, power, wavelength, control system, etc., can be customized as needed to meet your personalized production requirements.。
【产品详细参数】
| parameter items | Parameter Details |
|---|---|
| Product model | Pipeline JLK-GHL10010-F |
| ultraviolet light source | High-power LED light beads (Japanese/Korean/American chips, optional) |
| luminous area | 100mm * 100mm (standard size, other sizes can be customized) |
| Peak wavelength | 365nm or 395nm (optional, default is 395nm) |
| Illumination distance | 70mm |

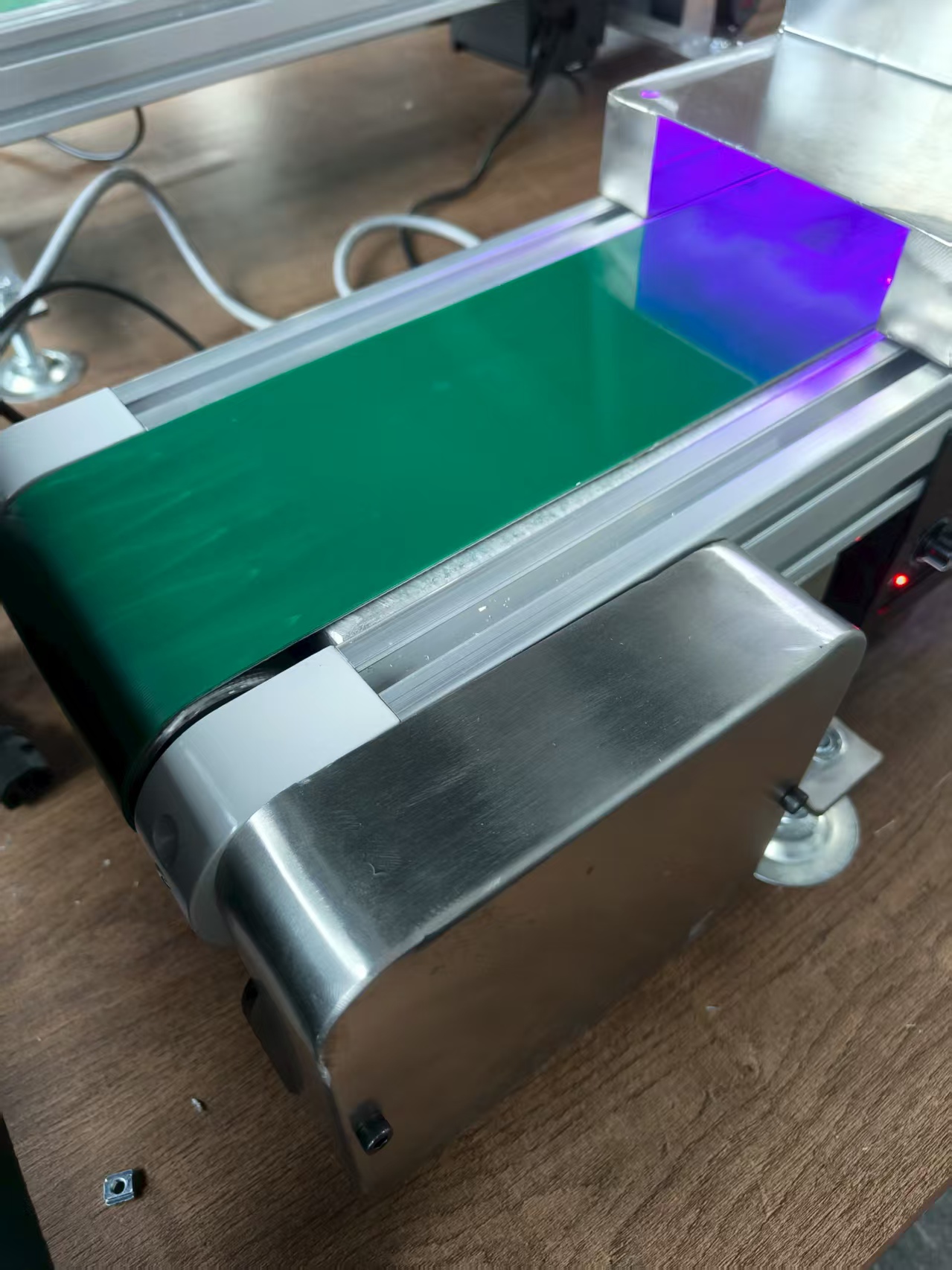

| conveyor belt | Silicone/Teflon Conveyor Belt (UV Aging Resistant) |
| Operation Mode | Switch on, rotate to adjust power |
| Control mode | switch control |
| Overall power | 500 W |
| power supply voltage | AC 220V / 50Hz |
| dimensions | L 1000 * W 250 * H 400mm |
| Net weight | 5Kg |
【Application fields】
This device is widely used in various scenarios that require ultraviolet curing.：
Electronic Industry: PCB Green Oil Curing, Component Fixing, Chip Packaging。
Photoelectric Industry: LCD Panel Bonding, Touch Screen Curing, Lens Glue Curing。
Medical supplies: Catheter bonding, needle fixation, medical device assembly。
Crafts and Scientific Research: Jewelry and Gemstone Glue Curing, Model Making, University and Research Institute Experiments。
Other: Curing of UV glue and UV ink on materials such as glass, plastic, metal.。
【Why choose us?】
Original manufacturer: Independently developed and produced, offering competitive prices, eliminating intermediary markups。
Quality Assurance: Key components are all from internationally renowned brands, with strict quality inspection to ensure the stability and durability of the equipment.。
Professional After-sales Service: Provides detailed installation instructions and technical support to eliminate all your worries.。
Customized Service: We deeply understand that "standard products cannot meet all needs" and provide flexible OEM/ODM customized services to tailor the most suitable curing solution for you.。
【Purchase Instructions】
Customizable according to your needs for different irradiation areas (such as 50*50mm, 200*200mm, 300*300mm, etc.), different conveyor lengths, wavelengths, and power.
Please clarify your curing material, required wavelength, and desired curing efficiency before purchasing; our customer service will recommend the most suitable model for you.
Support for sample trial curing is available; feel free to consult.
